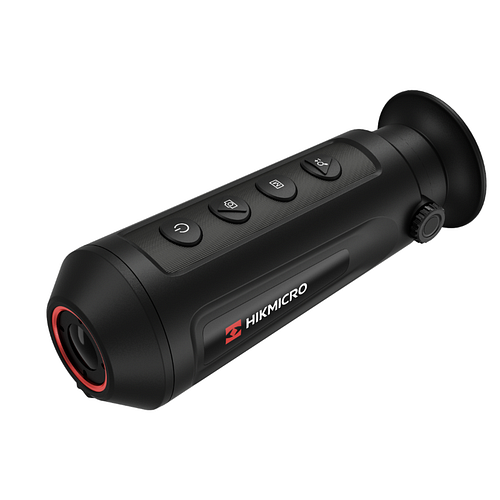

Hikmicro Lynx Pro LH 25 Handheld-Wärmebildgerät

Hikmicro Lynx Pro LH 25

Handheld Thermal Spotter.
4 Color Palettes: White Hot, Black Hot, Red Hot, Fusion 8 GB Memory, Wifi
NETD < 35mK

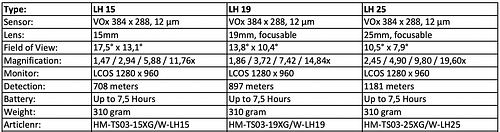

Algemeen
Lynx LC06
Lynx L15
Lynx Pro LH15
Lynx Pro LH19
Lynx Pro LH25

Detector resolutie
160 x 120
384 × 288
384 × 288
384 × 288
384 × 288

Refresh Rate
50Hz
50Hz
50Hz
50Hz
50Hz

Lens
6 mm
15 mm
15 mm
19 mm focusable
25 mm focusable

Field of View
24.7° × 18.7°
24.6° × 18.5°
17.5° × 13.1°
13.8° × 10.4°
10.5° × 7.9°

Optische vergroting
1.0x
1.9x
1.47x
1.86x
2.45x

Digitale Zoom
1X | 2X | 4X
1X | 2X | 4X | 8X
1X | 2X | 4X | 8X
1X | 2X | 4X | 8X
1X | 2X | 4X | 8X

Focus
∞
∞
∞
∞
∞

GPS
nee
nee
nee
nee
nee

Detectieafstand*
219 meter
529 meter
708 meter
897 meter
1180 meter

Afmeting
158.3 mm × 61 mm × 57 mm
158.3 mm × 61 mm × 57 mm
158.3 mm × 61 mm × 57 mm
171 mm × 61 mm × 57 mm
171 mm × 61 mm × 57 mm

SPECIFICATIES
Detector type: VOx 12 μm Uncooled Focal Plane Arrays
Thermische Resolutie: 384 × 288 pixels
Beeldfrequentie: 50 Hz
Field of View: 10.5° × 7.9°
Optische vergroting: 2.45x
Lens: 25 mm
Kleur pallettes: Black Hot, White Hot, Red Hot, Fusion
Batterij duur: 6 - 7,5 uur
Zoom: Digitaal 1 ×, 2 ×, 4 ×, 8 ×
Gewicht: 300 g
Detectiebereik: 1180 m
Afmetingen: 171 mm × 61 mm × 57 mm
Waterproof: Ja, IP67
GPS: Nee
Opslag: Ingebouwd geheugen (8 GB)

Hikmicro Lynx-Serie handleiding:
https://www.jachtenoutdoor.nl/Files/3/7000/7634/FileBrowser/hikmicro-handleidingen/lynx_um_v5.5.38_nl-nl_20220623.pdf
