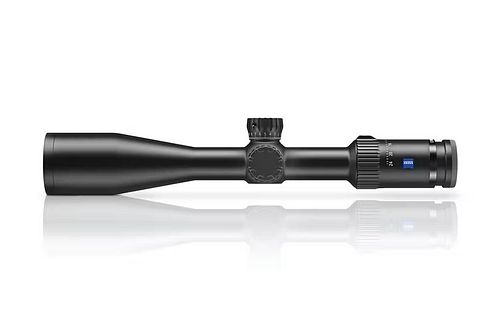

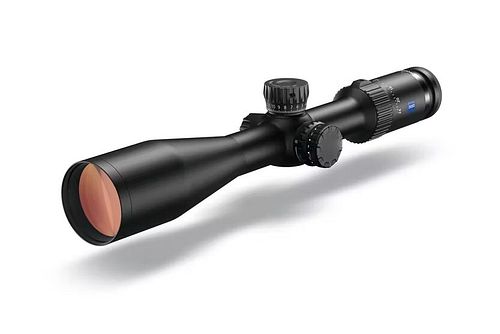

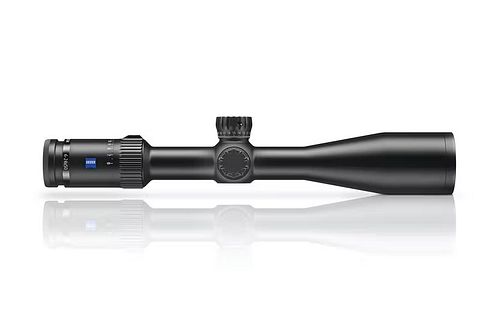

Zeiss V4 6-24×50

Magnification: 6 – 24 x

Effective lens diameter: 44.9 – 50.0 mm

Light transmission: 90%

Exit pupil diameter: 7.5 – 2.1 mm

Twilight factor: 16.4 – 34.6

Field of view at 100 m: 6.3 – 1.6 m

Objective viewing angle: 3.6° – 0.9°

Diopter adjustment range: + 2.0 | − 3.0 dpt

Eye relief: 90 mm (3.54 “)

Parallax setting: 9.1 m – ∞

Adjustment range at 100 m: 230 × 175 cm

Adjustment per click at 100 m: 1/4 MoA (0.7 cm /100 m)

Centre tube diameter: 30 mm

Eyepiece tube diameter: 44 mm

Objective tube diameter: 56 mm
