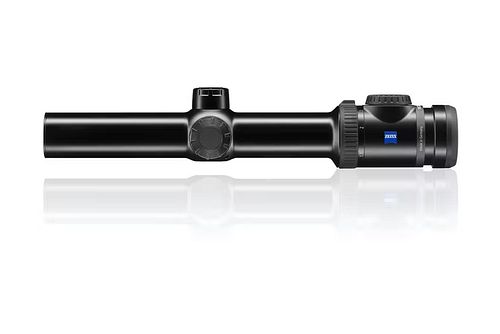

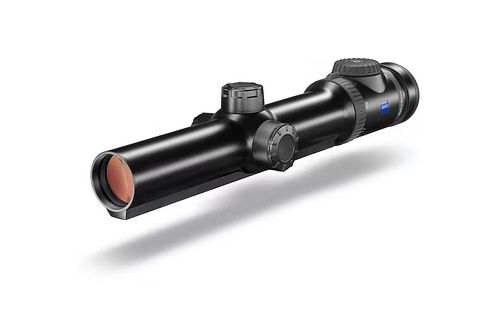

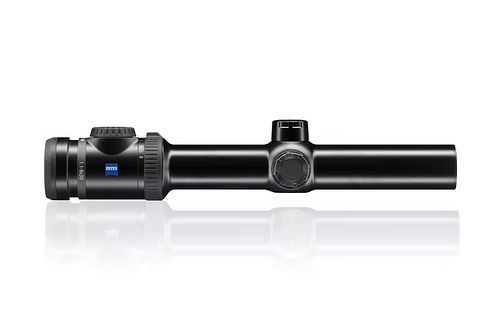

Zeiss V8 1.1-8×30

Magnification: 1.1 – 8 ×

Effective lens diameter: 10.6 – 30 mm

Light transmission: 92%

Exit pupil diameter: 9.9 – 3.9 mm

Twilight factor: 3.1 – 15.5

Field of view at 100 m: 39.6 – 5.4 m

Objective viewing angle: 22.2° – 3°

Diopter adjustment range: − 3.5 | + 2 dpt

Eye relief: 95 mm (3.74 “)

Parallax setting: 100 m

Vertical adjustment range at 100 m: 500 cm

Lateral adjustment range at 100 m: 320 cm

Adjustment per click at 100 m: 1 cm

Centre tube diameter: 36 mm

Eyepiece tube diameter: 46 mm

Objective tube diameter: 36 mm
