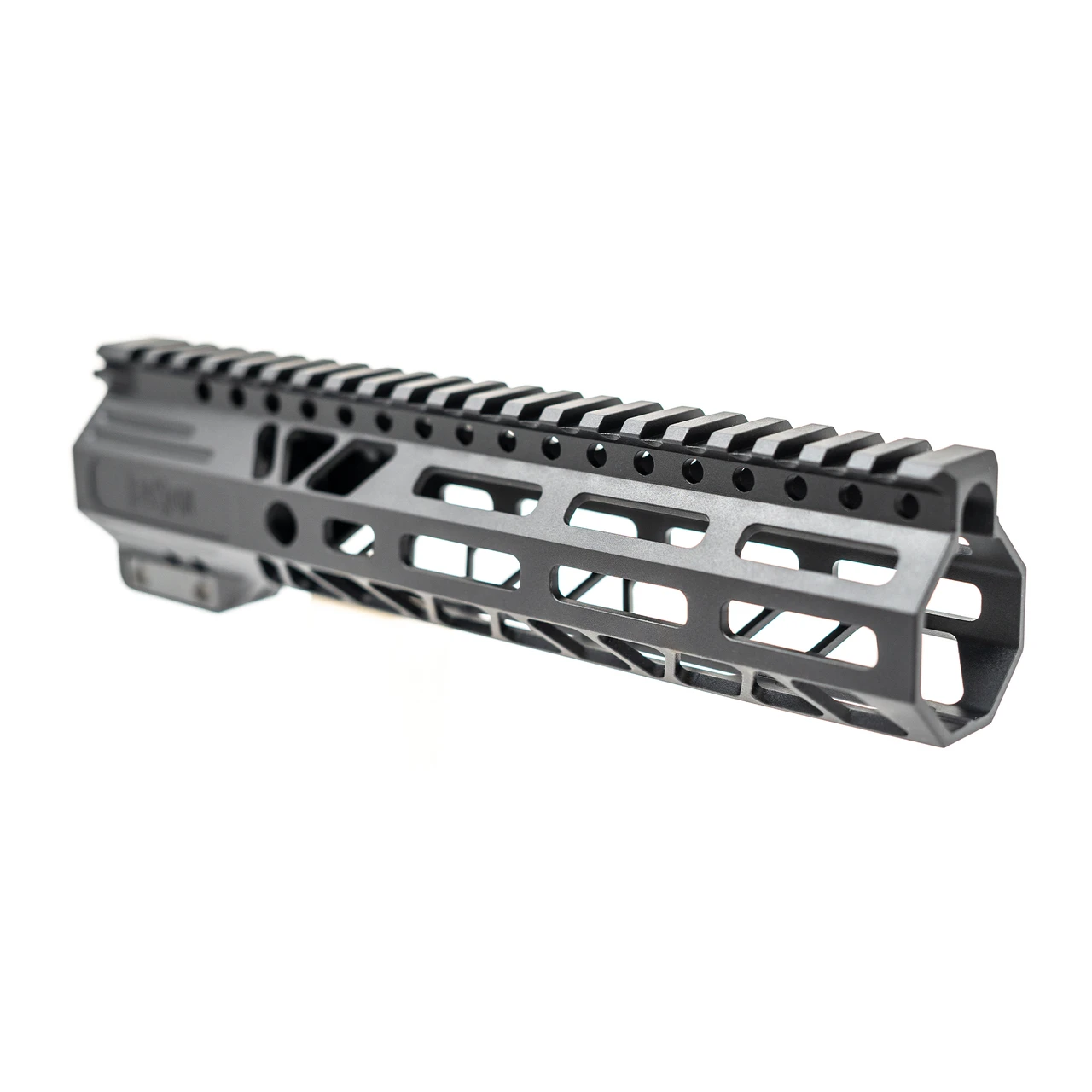

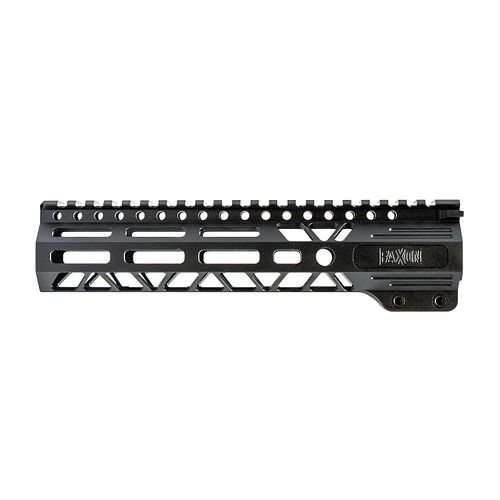

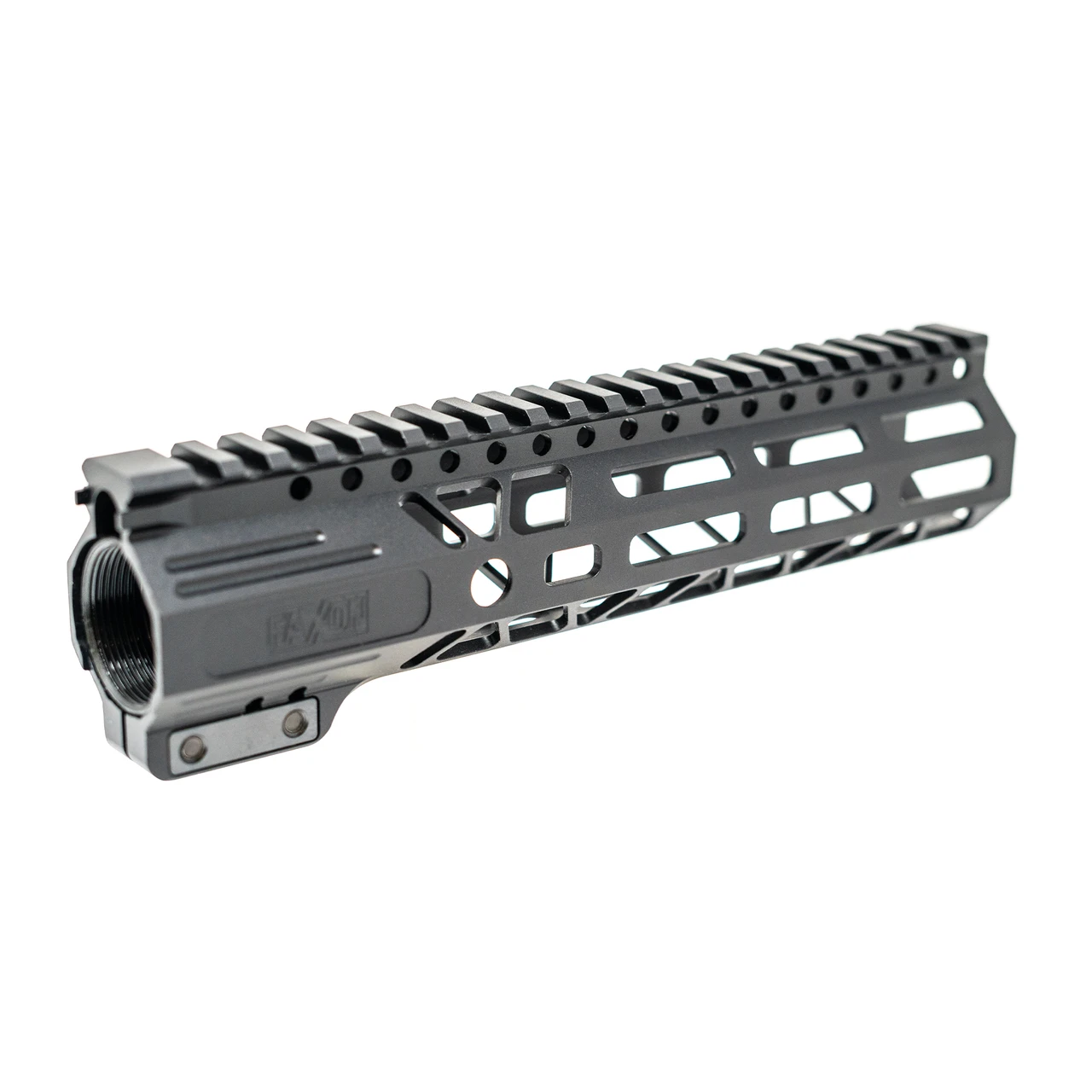

FAXON Streamline GEN3 AR-15 M-LOK Handguard 9"

Easy installation, no special tools are required to assemble the barrel nut! Faxon is proud to offer the Gen 3 Streamline Series of handguards to compliment any Modern Sporting Rifle. The handguard is 100% made in the USA from extruded 6061 aluminum. The handguards are hard-coat anodized black and feature a steel barrel nut. Mounting is extremely simple with common tools and the handguard features alignment tabs to ensure it cannot rotate during vigorous movement. Specifications: Height (Flat to Flat): 1.54"Max Outer Diameter (Peak to Peak): 1.67"Max Inner Diameter: 1.34"Weight: 0.67 lbsConstruction: 6061 Aluminum - Hard Coat AnodizedAccessory Mounting: M-LOK Installation Instructions: Torque barrel nut to industry specs using 1-3/16” wrench to at least 35ft/lbs but no more than 60ft/lbs. DO NOT OVER-TIGHTEN.Install handguard over the barrel nut aligning the upper receiver rail between the alignment tabs.Install locking plate into the recess on the handguard and thread both bolts through the handguard and into the locking plate. Torque bolts to 32 in/lbs.After the initial live fire test, check to make sure the bolts are still tight and not walking out.
