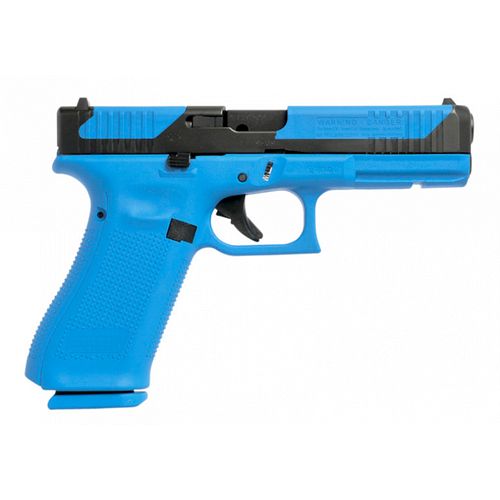

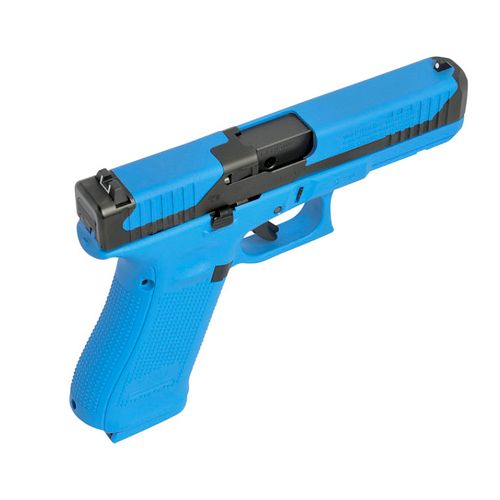

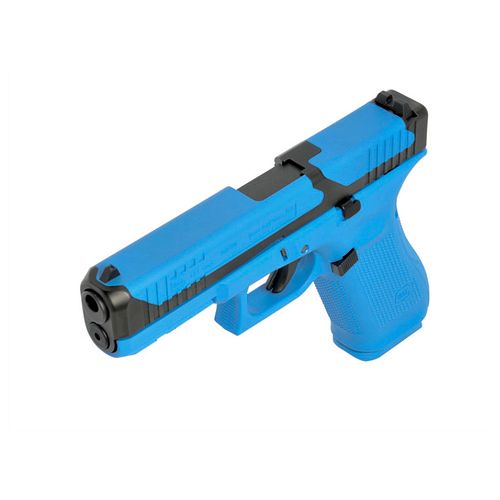

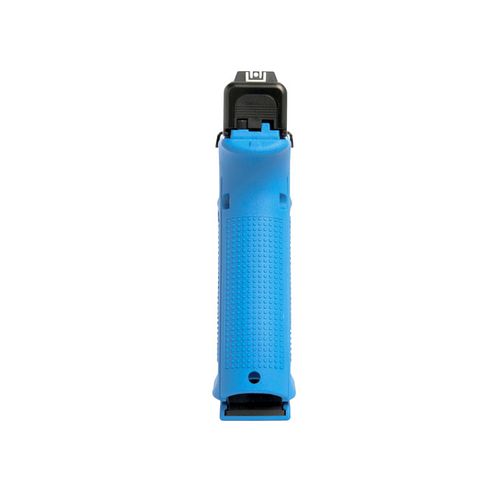

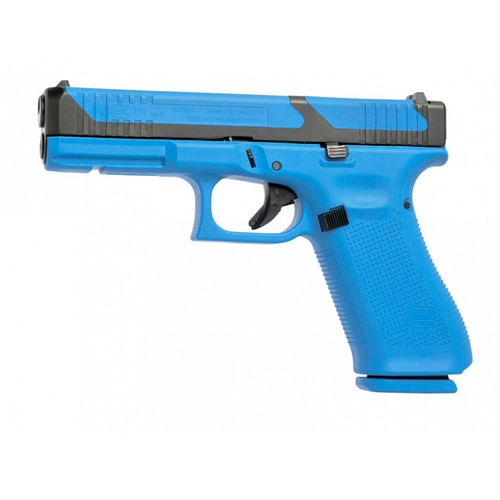

GLOCK 17 T FX GEN 5

PISTOLE GLOCK 17 T FX GEN 5



ACHTUNG WAFFE IST KAT B

The GLOCK Training pistols were developed for the purpose of enabling reality-based tactical operations’ training with color marking or plastic bullet ammunition.

The slide with polymer inserts reduces its weight to comply with the increasing diversity of modern training ammunition.

These pistols use the popular FX or FOF ammunition, which are used by military and law enforcement units around the world.

Taking training to the next level requires more than just paper targets and an hour at the range. With situations and engagements becoming more complex, modern law enforcements and military units use Force-on-Force training to give their officers and soldiers the training they need to succeed.

GLOCK's revolutionary Safe Action® System provides a consistent trigger pull from the first to the last round.

The three automatic, independently operating mechanical safeties are built into the fire control system of the pistol.

Every GLOCK pistol comes with 3 independent safeties:

Trigger safety

Firing pin safety

Drop safety

All three safeties disengage sequentially as the trigger is pulled. They automatically reengage when the trigger is released.

The new frame design of the GLOCK 17 Gen5 removed the finger grooves for more versatility but still allows to easily customize its grip by using the different back straps. The slide has the superior GLOCK hard-surface finish nDLC in non-reflective black. It comes with front serrations (FS) which provide an additional tactile surface choice when manipulating the slide giving the operator positive traction even with wet or sweaty hand.

The flared mag-well of the frame give the user more speed during reloading when fractions of a second matter. A reversible enlarged magazine catch, changeable at user level as well as the ambidextrous slide stop lever accommodate left and right-handed operators.

Every G17 Gen5 features the match-grade GLOCK Marksman Barrel (GMB) delivering increased accuracy with polygonal rifling and an improved barrel crown.



TECHNICAL DATA

Caliber

Training ammunition

System

Safe Action

Magazine Capacity

Standard: 17

Optional: 17 / 19

Barrel Length

114 mm | 4.49 inch

Weight without magazine

480 g | 16.58 oz

Weight emty magazine

560 g | 19.40 oz

Weight with loaded magazine

630 g | 22.05 oz

Trigger Pull

28 N



DIMENSION



1

LENGTH (OVERALL)*

202 mm | 7.95 inch

2

SLIDE LENGTH

186 mm | 7.32 inch

3

WIDTH (OVERALL)

34 mm | 1.34 inch

4

SLIDE WIDTH

25,5 mm | 1.0 inch

5

HEIGHT INCL. MAG.

139 mm | 5.47 inch

6

Sight Radius POLYMER

165 mm | 6.50 inch

Sight Radius STEEL

164 mm | 6.46 inch

Sight Radius GNS

163 mm | 6.42 inch

7

TRIGGER DISTANCE*

70 mm | 2.76 inch

* FOR GEN4/GEN5 MODELS, G19X, G45: Check out the Gen5, Gen4, G19X and G45 Technology area for medium/large backstraps.
Technical Data are rounded and do not reflect tolerances – they may be altered without notice! Subject to technical changes.
