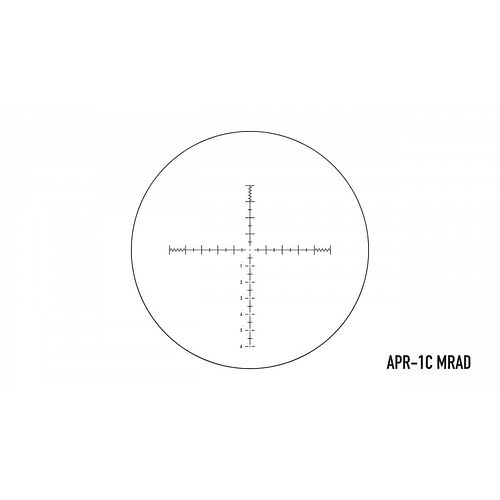

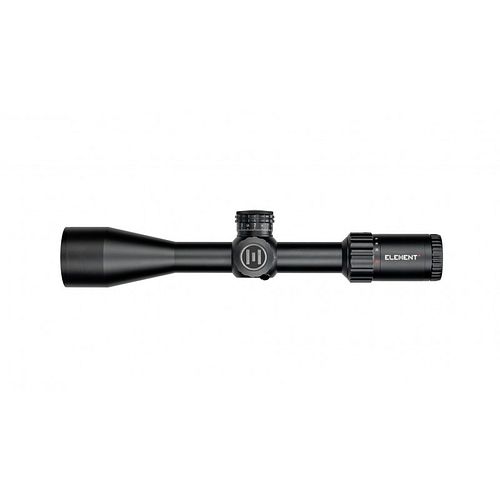

ELEMENT OPTICS HELIX G2 6-24X50 SFP ABS APR-1C MRAD

ELEMENT OPTICS HELIX G2 6-24X50 SFP ABS APR-1C MRAD

The HELIX GEN 2 continues the legacy of our original HELIX line of riflescopes, with industry-leading reliability and performance taken to the next level with new features and further design improvements.

The important things come first: Reliable tracking, intelligent reticles, innovative features and a user-friendly turret system. The turret system is tool-free and now features 8 MRAD or 20 MOA per revolution. The zero-stop mechanism ensures you never lose track of where you are, and the First Focal Plane reticle ensures precise reticle calibration at all magnifications. Optically, the familiar 4x erector system is complemented by a new design allowing for a larger field of view and a more forgiving eye-box. Stringent quality control checks are in place to ensure repeatable performance under harsh conditions.

• Zero Stop
• Strong and Rugged Design
• Adjustable Diopter
• Second Focal Plane
• Weather Resistant
• Side Parallax
• 30mm Body Tube
• Advanced Fully Multi-Coated Lenses

MAGNIFICATION RANGE
6-24x

TUBE DIAMETER
30mm

OBJECTIVE LENS DIAMETER
50mm

EXIT PUPIL
8.3-2.1mm

EYE RELIEF
3.7 – 4" (94-102mm)

FIELD OF VIEW
20.1-5.1 ft @ 100 yds (6.7-1.7m @ 100m)

CLICK VALUE
1/4 MOA (20 MOA / REV)
1/10 MRAD (8 MRAD / REV)

ELEVATION ADJUSTMENT RANGE
65 MOA
18.9 MRAD

WINDAGE ADJUSTMENT RANGE
40 MOA
11.6 MRAD

MINIMUM PARALLAX
10 YDS
10 METERS

LENGTH
14.0 Inches
356 mm

WEIGHT
29.2oz
830g
