SPUHR MONTAGE DM 34 BH 38/21 13 MIL / 44,4 MOA

SPUHR MONTAGE DM 34 BH 38/21 13 MIL / 44,4 MOA

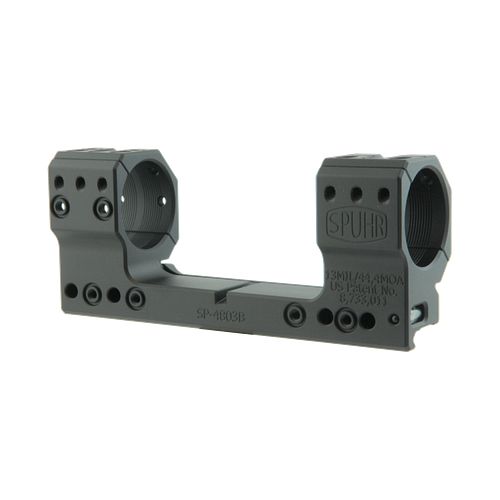

For scopes with long erector housings such as U.S. Optics TPAL and Nightforce BEAST.

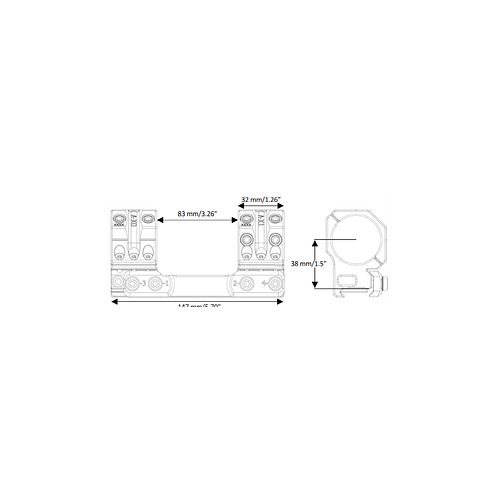

Distance from ring to ring is 82 mm/3.228".

13 MIL/44,4 MOA

Height: 38 mm/1.5”

Length: 147 mm/5.79”

Weight: 268 g/9.5 oz

10-degree wedge included

The IDEAL SCOPE MOUNT SYSTEM series of mounts feature seven set of interfaces to attach  any  of  more  than  40  different  accessories,  and  has  a  bubble  level  integrated  in  the  rear  plane  of  the  mount  body  to  prevent  canting  of  the  rifle.  The  rings  are  diagonally  cut  for  increased  visibility of the elevation and windage turrets (US Patent 8,733,011).  The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance. The screws come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
