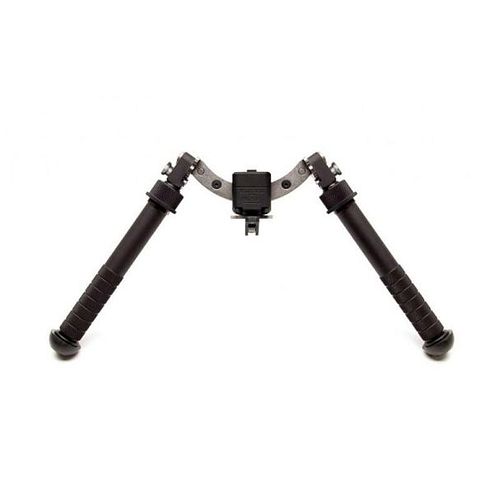

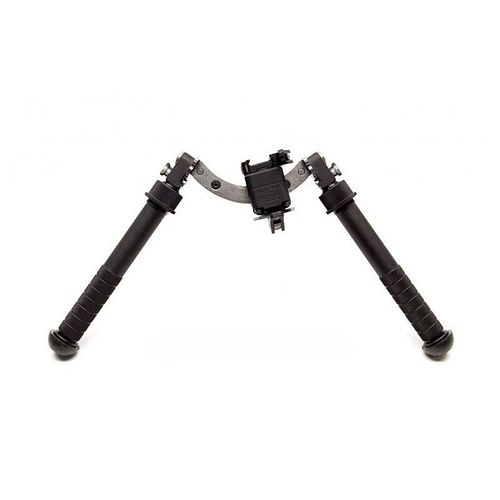

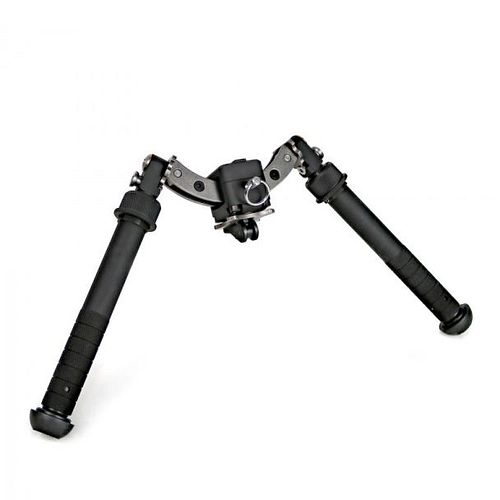

Atlas BT35-NC 5-H Bipod no clamp

Since B&T Industries introduced the Atlas Bipod in 2006, the shooting community found a usefulness in its patented, novel features. We began receiving requests for a "bigger," "heavier," "stouter" bipod with the same features. The BT35-NC 5-H Atlas Bipod "No Clamp" has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires the 5-H-ADM Lever or will mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only. Height Range: 12,19 - 25,4cm (4.8 - 10"), 16,76cm (6.6”) at 90° Pan: 30 degrees Cant: 30 degrees Pan and Cant can be locked out at top dead center Pan and Cant Tension Wheel has Detent adjustability and Cam-Lock Position Button 1,27cm (0.5") diameter 5 leg positions: 0, 45, 90, 135 & 180 degrees Non-Rotating Legs: outer leg does not rotate around inner leg Weight: 730 gram (25.74 ounces) approx. Footprint: 36,83 - 49,53cm (14.5–19.5") If planning for installation of an ARCA mount, such as the Area 419 ARCALOCK Clamp, the 5-H would require Area 419's ARCALOCK Spigot Extension for clearance of the cradle and operation of the clamp's knob. NC: No Clamp - Atlas 5-H Series Bipod Video Tutorial below Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions. Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions 19mm apart Standard soft, durable Rubber feet that are suitable for many surfaces Optional interchangeable Spike and Ski, feet easily swapped in the field with the press of a stainless steel plunger with a bullet tip Optional mounting systems available for Accuracy International rifles
