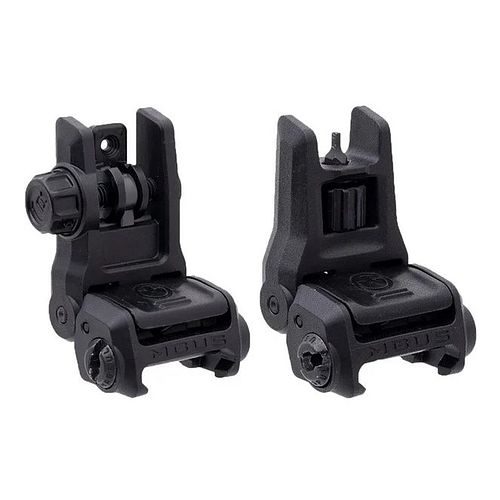

MAGPUL Mbus Gen3 (Set)

MAGPUL Mbus Gen3 (set)

The MBUS 3 Front Sight sits at standard AR-height when deployed and includes tool-less elevation adjustment of a dual width enhanced front post similar to the MBUS Pro.

Features:

Tool-less elevation adjustment and dual width enhanced front sight post, similar to MBUS Pro

0.47” high when folded and 1.38” wide at widest point

Standard AR-height when deployed

Polymer construction, smaller size provides light weight and resists operational abuse

Clamps to most MIL-STD-1913 picatinny rails

Specifications:

Position: Front

Height above rail, stowed: ~0.47 in.

Platform: AR10, AR15, M4, M16, M110, SR25

Weight with hardware: 25 g

Elevation Adjustment:

~1 MOA (1.131”/100 m) per click with a 14.5″ sight radius

~0.7 MOA (0.820”/100 m) per click with a 20″ sight radius

*NOTE: Cannot be mounted to a railed gas block due to excess heat issues. Front MBUS must be mounted to a railed forend on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards.
