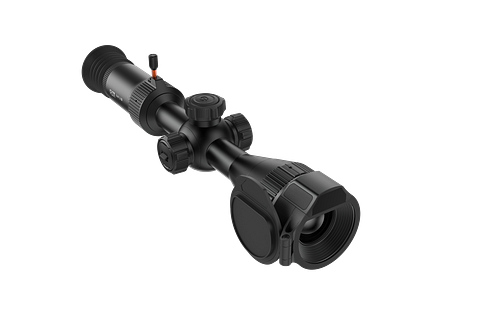

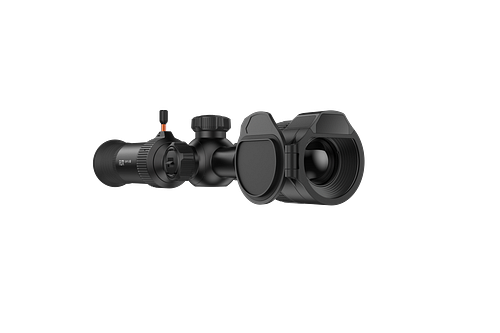

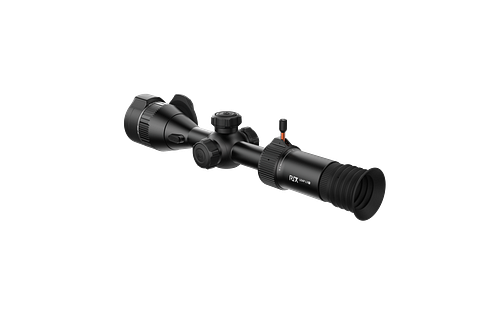

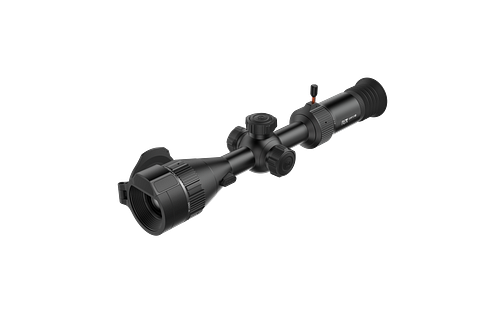

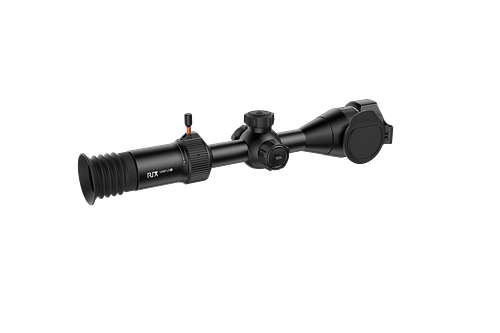

Rix Optics Leap L3R LRF Wärmebildzielfernrohr

Specificaties

Sensor

Type: VOx Uncooled

Resolution: 384×288

Pixel Pitch: 12μm

NETD: <20 mK

Frame Rate: 50 Hz

Optical

Objective Lens, mm: 35

Optical Zoom, x: 3.2~9.6

Field of View (H×V): 7.5°×4.2°

Digital Zoom, x: 1 to 4

Eye Relief, mm: 50

Diopter Adjustment, D: -5 to +5

Detection Range, m: 1800

Display

Type: AMOLED

Resolution, pixels: 1920×1080

Laser Rangefinding

Measurement Range, m: 1200

Measurement Accuracy, m: ±1

Video Recorder

Video / Photo Resolution, pixel: 1280×720

Video / Photo Format: .mp4 / .jpg

Built-in Memory, GB: 32

Physical

Degree of Protection, IP code: IP67

Operating Temperature Range, °C: -20 tot +50

Weight, kg: 1,23

Dimensions, mm: 361 × 89 × 76

Connections and Compatibilities

Battery Type: 18650

Operating Time on Battery Pack (at t=72°F), h: 4

External Power Supply, V: 5V (Type-C USB)

Max Recoil Power on Rifled Weapon (Eo), g/Joules: 1000/6000

Compatible Mounts: 30mm rings

Package Content

1x Rix Optics Leap L3R

1x Scope Mount For Picatinny/Weaver

2x 18650 Battery

1x Battery Charger

1x Eye cup

1x Carrying Case

1x USB Type-C Cable

5x Thermal Pads

1x lens Cloth
