Combat Application Trainer Tourniquet (C-A-T) Trainer Blau

C-A-T® Trainer Version

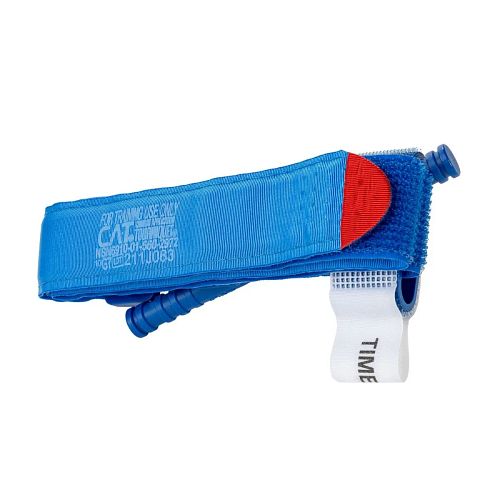

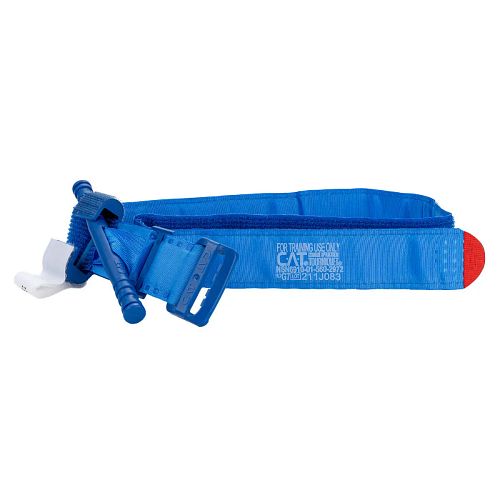

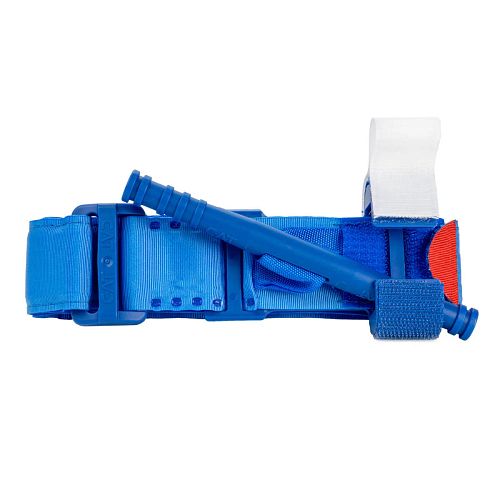

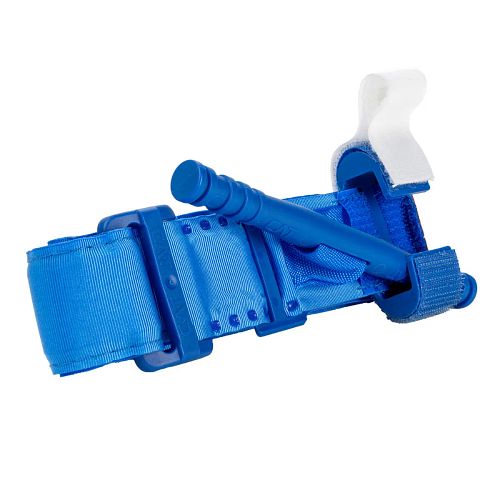

This fully functioning Gen 7 C-A-T® tourniquet is colored blue to identify it as a training device enabling instructors and trainees hands-on training & tourniquet application practice with a distinct visual means to distinguish training devices from personal/operational life-saving devices.

The CAT utilizes a durable windlass system with a patented free-moving internal band providing true circumferential pressure to the extremity. Once adequately tightened, bleeding will cease and the windlass is locked into place. A hook and loop windlass retention strap is then applied, securing the windlass to maintain pressure during casualty evacuation.

The patented Combat Application Tourniquet® (C-A-T®) featuring the proprietary red tip design and the mechanical advantage of a band within a band has been the Official Tourniquet of the U.S. Army since 2005. The innovations in the CAT are protected by U.S. Patent Nos. 7,842,067 and 7,892,253.

Educational Materials can be found HERE.

Specs

SEL#: 09MS-04-BAND

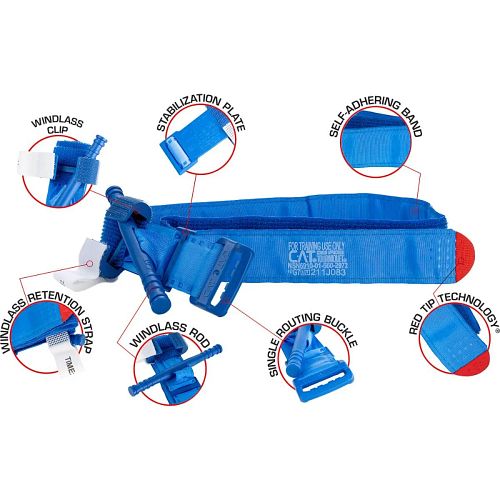

Product Enhancements:

1. WINDLASS CLIP

Rapid Windlass lock from either side (ambidextrous)

Durable construction keeps windlass secure

2. STABILIZATION PLATE

Reinforced beveled stabilization plate minimizes discomfort and provides stable pressure under windlass

3. FREE-MOVING INTERNAL BAND

Distributes pressure across TQ width, reducing pressure spikes on the TQ band edges as seen with competitor devices

Minimizes friction during application

4. WINDLASS STRAP

NEW welding process features strong adherence of strap to clip (Released 2025)

Secures windlass rod and prevents dislodgment during movement

5. WINDLASS ROD

Large diameter for strength

Aggressive ribbing for slip-free grip

Twist for additional tightening of the tourniquet to stop bleeding

6. SINGLE ROUTING BUCKLE

Allows for fast application which decreases blood loss

Simplifies effective slack removal

7. RED TIP TECHNOLOGY®

Features NAR’s signature of premium quality: red elliptical tip

Rounded tip easily feeds through buckle

Special Features:

Awarded as one of the “Top 10 Greatest Inventions” by the U.S. Army

Official Tourniquet of the U.S. Army

Used by both conventional and Special Operation forces

Proven to be 100% effective in occluding blood flow in both upper & lower extremities by the U.S. Army’s Institute of Surgical Research

True, one-handed application tourniquet

Quickly controls life-threatening extremity bleeding

Recommended by the Committee on Tactical Combat Casualty Care

Designed to perform in all weather conditions

Small and cost-effective

Protected by U.S. Patent Nos. 7,842,067 and 7,892,253

Dimensions:

Packaged: L 6.5 in. x W 2.4 in. x D 1.5 in.

Open Length: 37.5 in.

Strap Width: 1.5 in.

Weight: 2.7 oz
