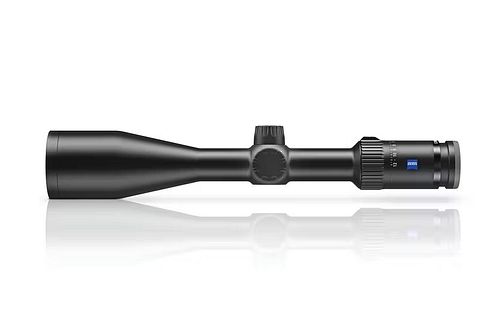

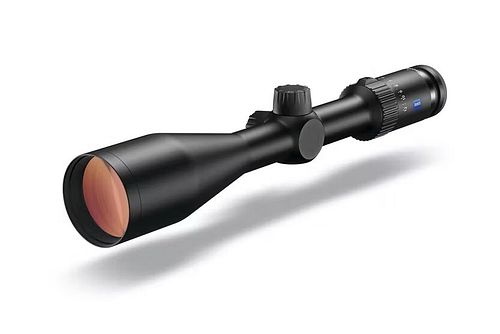

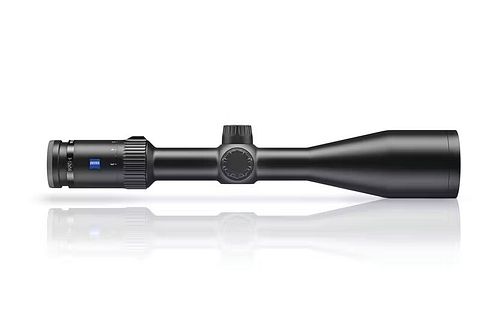

Zeiss V4 3-12×56

Magnification: 3 – 12 x

Effective lens diameter: 27.7 – 56 mm

Light transmission: 90%

Exit pupil diameter: 9.2 – 4.7 mm

Twilight factor: 9.1 – 25.9

Field of view at 100 m: 12.7 – 3.2 m

Objective viewing angle: 7.2° – 1.8°

Diopter adjustment range: + 2.0 | − 3.0 dpt

Eye relief: 90 mm (3.54 “)

Parallax setting: 91.4 m

Adjustment range at 100 m: 200 cm

Adjustment per click at 100 m: 1/4 MoA (0.7 cm /100 m)

Centre tube diameter: 30 mm

Eyepiece tube diameter: 44 mm

Objective tube diameter: 62 mm
