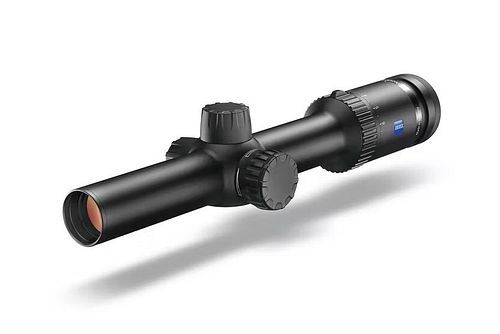

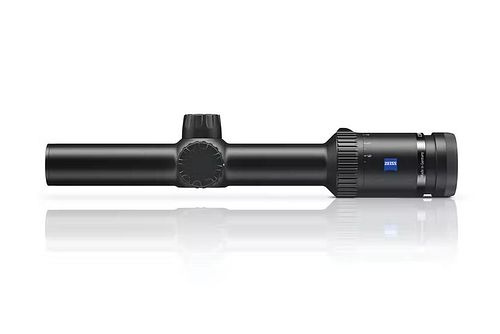

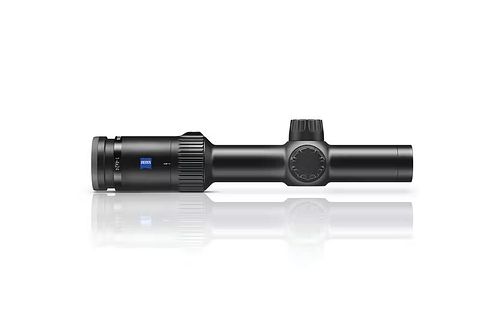

Zeiss V4 1-4×24

Magnification: 1 – 4 x

Effective lens diameter: 12.1 – 24 mm

Light transmission: 90%

Exit pupil diameter: 11.9 – 6 mm

Twilight factor: 3.5 – 9.8

Field of view at 100 m: 38 – 9.5 m

Objective viewing angle: 21.5° – 5.4°

Diopter adjustment range: + 2.0 | − 3.0 dpt

Eye relief: 90 mm (3.54 “)

Parallax setting: 91.4 m

Adjustment range at 100 m: 300 cm

Adjustment per click at 100 m: 1.4 cm

Centre tube diameter: 30 mm

Eyepiece tube diameter: 44 mm

Objective tube diameter: 30 mm
