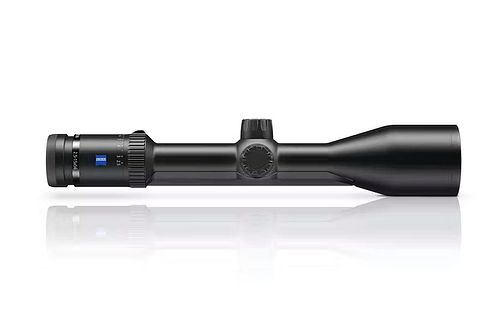

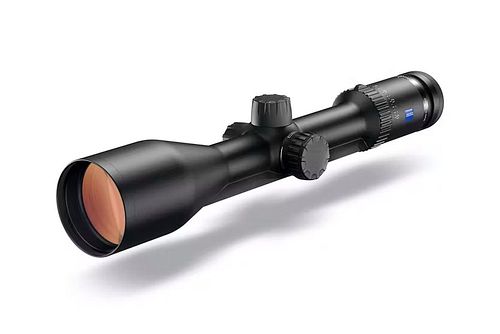

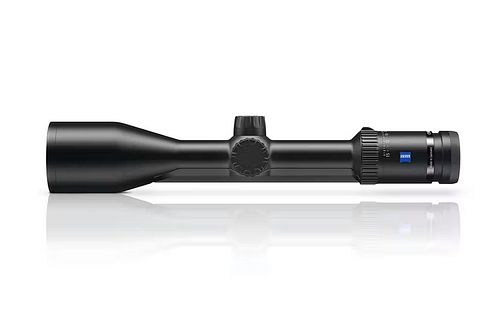

Zeiss V6 2.5-15×56

Magnification: 2.5 – 15 ×

Effective lens diameter: 24.3 – 56 mm

Light transmission: 92%

Exit pupil diameter: 9.7 – 3.7 mm

Twilight factor: 7.1 – 29.0

Field of view at 100 m: 16.4 – 2.7 m

Objective viewing angle: 9.4° – 1.6°

Diopter adjustment range: + 2.0 | − 3.0 dpt

Eye relief: 90 mm (3.54 “)

Parallax setting: 100 m

Square adjustment range at 100 m: 200 cm

Adjustment per click at 100 m: 1 cm

Centre tube diameter: 30 mm

Eyepiece tube diameter: 45.5 mm

Objective tube diameter: 62 mm
