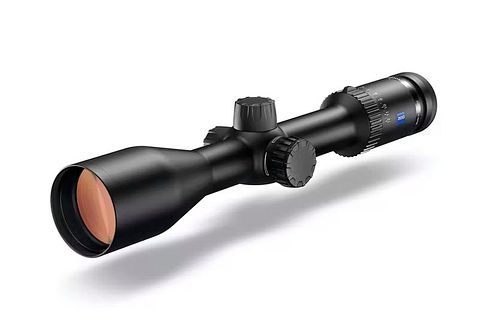

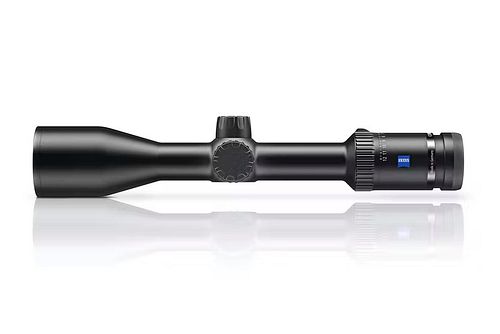

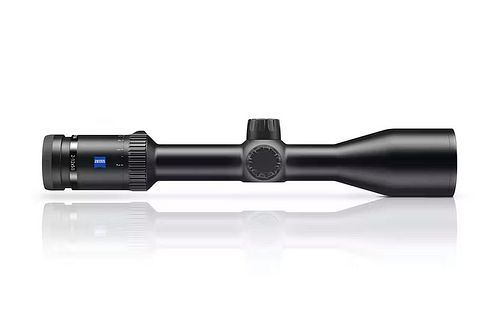

Zeiss V6 2-12×50

Magnification: 2 – 12 ×

Effective lens diameter: 19.4 – 50 mm

Light transmission: 92%

Exit pupil diameter: 9.7 – 4.2 mm

Twilight factor: 5.7 – 24.5

Field of view at 100 m: 20.5 – 3.4 m

Objective viewing angle: 11.7° – 2.0°

Diopter adjustment range: + 2.0 | − 3.0 dpt

Eye relief: 90 mm (3.54 “)

Parallax setting: 100 m

Square adjustment range at 100 m: 250 cm

Adjustment per click at 100 m: 1 cm

Centre tube diameter: 30 mm

Eyepiece tube diameter: 45.5 mm

Objective tube diameter: 56 mm
