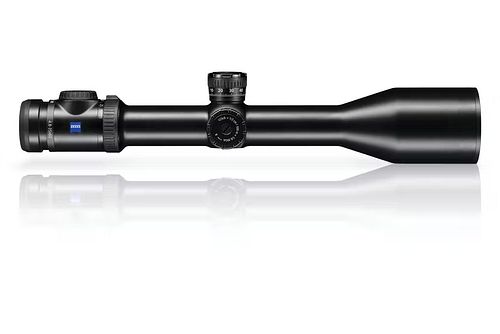

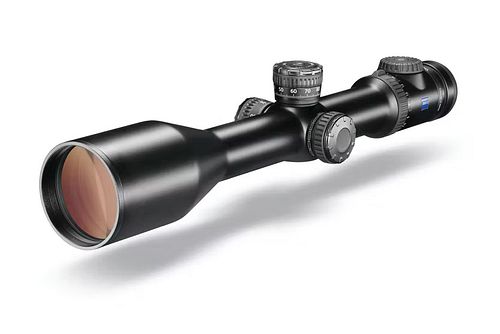

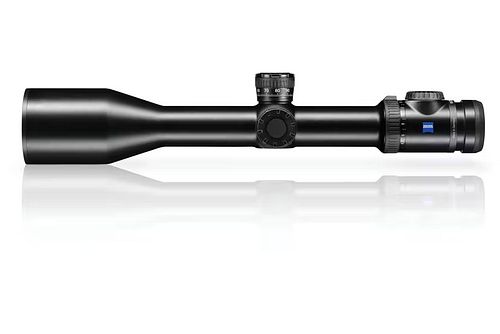

Zeiss V8 4.8-35×60

Magnification: 4.8 – 35 ×

Effective lens diameter: 48.1 – 60 mm

Light transmission: 92%

Exit pupil diameter: 9.9 – 1.4 mm

Twilight factor: 13.6 – 45.8

Field of view at 100 m: 8.6 – 1.2 m

Objective viewing angle: 4.9° – 0.7°

Diopter adjustment range: − 3.5 | + 2 dpt

Eye relief: 95 mm (3.74 “)

Parallax setting: 50 m – ∞

Vertical adjustment range at 100 m: 130 cm

Lateral adjustment range at 100 m: 85 cm

Adjustment per click at 100 m: 0.5 cm

Centre tube diameter: 36 mm

Eyepiece tube diameter: 46 mm

Objective tube diameter: 67 mm
