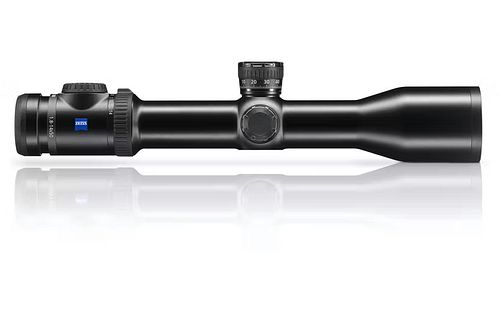

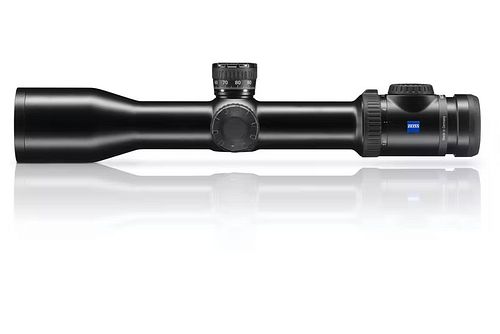

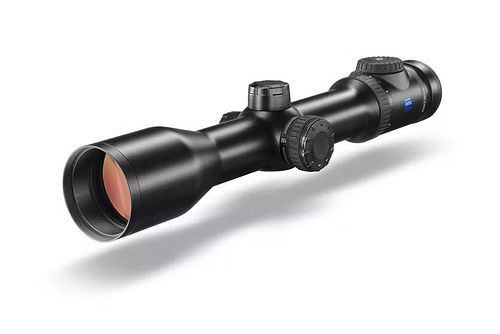

Zeiss V8 1.8-14×50

Magnification: 1.8 – 13.5 ×

Effective lens diameter: 18.6 – 50 mm

Light transmission: 92%

Exit pupil diameter: 10.3 – 3.7 mm

Twilight factor: 5.1 – 26

Field of view at 100 m: 23 – 3.1 m

Objective viewing angle: 13.1° – 1.8°

Diopter adjustment range: − 3.5 | + 2 dpt

Eye relief: 95 mm (3.74 “)

Parallax setting: 50 m – ∞

Vertical adjustment range at 100 m: 310 cm

Lateral adjustment range at 100 m: 200 cm

Adjustment per click at 100 m: 1 cm

Centre tube diameter: 36 mm

Eyepiece tube diameter: 46 mm

Objective tube diameter: 56 mm
