Magpul - MOE® AK-Handschutz für AK-47 / AK-74 - Flat Dark Earth - MAG619-FDE

MOE® AKM Hand Guard AK-47 / AK-74 / Flat Dark Earth Magpul MAG619-FDE

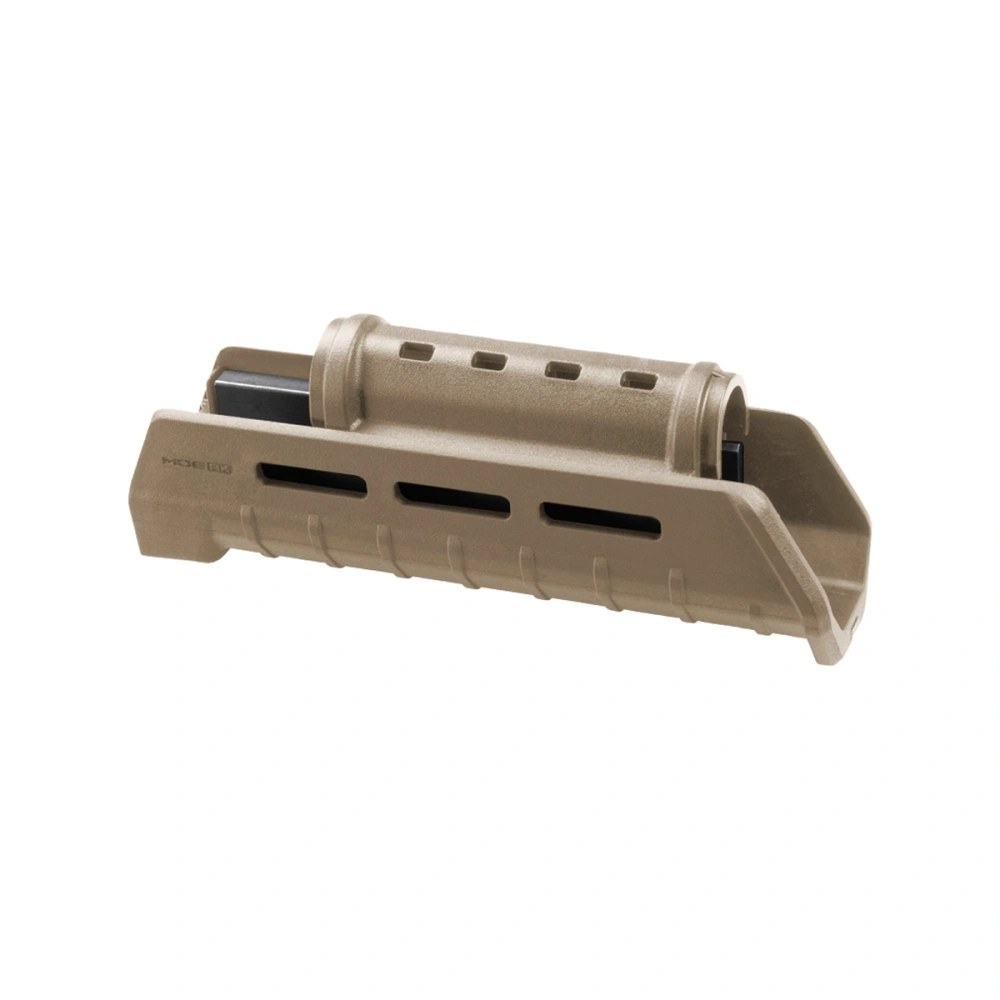

Modern polymer MOE® Hand Guard equipped with holes compatible with the M-LOK® system, designed for AK-47 / AKM / AK-74 carabiners.

An interesting design combining aesthetics with ergonomics was applied to a structure made of reinforced polymer. The splines on both sides of the grip limit the movement of the hand beyond the bed, which translates into higher safety of the carabiner operation. The ribbing is responsible for the sure grip and thanks to the aggressive shape it also works well with gloves.

Installation is extremely easy, and as in the original, does not require the use of tools. M-LOK® slots on the sides and bottom allow for assembly vertical grip and tactical lighting. The perforation on the upper part improves the ventilation of the gas tube. In addition to the included top, the grip is also compatible with the UltiMAK Optics Mount, which allows you to move the sight to the front.

The use of a heat-resistant polymer allows the safe use of weapons. The metal shield located inside facilitates the heat exchange, and thus improves the barrel cooling. It should be remembered that the assembly of the hand guard uses a support plate from the original grip.

Features:

Optimized for stamped AK47 / AKM / AK74 carbines with wooden or polymer cladding

M-LOK® system openings at 3, 6 and 9 o'clock

It is possible to use the factory cleaning rod

Easy to install using the factory plate bracket

Compatible with UltiMAK Optics Mount

The handguard is incompatible with Yugoslav carabiners, with RPK-style carabiners and made by milled technique.

Technical data

Producer
Magpul

Product code
MAG619-FDE

Production
USA

Color
Flat Dark Earth

Weight
222 g

Length
190 mm

Shank width
48 mm

Height (bottom)
50 mm

Compatibility
AK47 / AKM / AK74 (without front sling handle)
