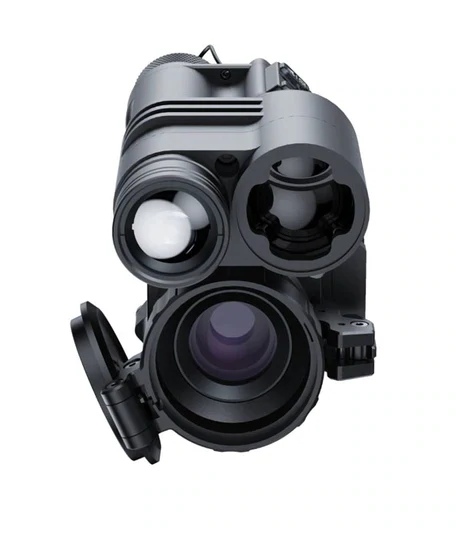

Pard FD1-LRF

Lækker lille sag

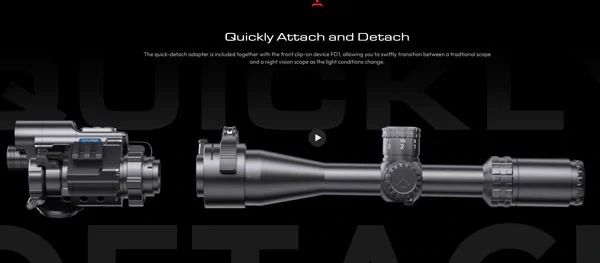

Kan bruge på din alm kikkert, med medflg afdapter, men kan også bruges med det medflg øjestykke.

Indbygget afstandsmåler.

Kræver tilladelse

Model
FD1/FD1-LRF

Classification
Digital Night Vision Front Clip-on

Sensor

Type
CMOS

Resolution(px)
1920*1080

Pixel Size(µm)
2.9

Frame Rate(Hz)
Color:60/B&W:30

Image Engine
PARD VLEA

Optics

Purpose
RifleScope/Monocular
Clip-on

Objective Lens(mm)
30

Optical Magnification(x)
3.5
1

Digital Zoom(x)
2
N/A

Field of view (HxV)
Horizontal
7.9

Vertical
5.9

Diagonal
9.9

Eye Relief(mm)
30
N/A

Diopter Adjustment
– 5D~+5D
N/A

Display

Purpose
RifleScope/Monocular
Clip-on

Type
OLED

Resolution(px)
1440*1080

Reticle Style
6

Reticle Color
Red/White/Yellow/Green
N/A

Image Mode
Color /Mono

Photo / Video

Photo Resolution(px)
2592*1944

Photo Format
.JPG

Video Resolution(px)
TBD

Video Format
.mp4

Storage
TF card(128 GB,Max)

Main function

Purpose
RifleScope/Monocular
Clip-on

LRF Detection Range
1200yd

Ballistic Calculator
Yes
N/A

PIP
Yes
N/A

Self-motivated Recording
Yes

Loop Recording
Yes

Microphone
Yes

IR Wavelength(nm)
850/940

IR Illuminating Level
3 Levels

Connections

USB Tpye-C
Yes

WiFi
Yes

Supported Apps
PardVision

Power Supply

Battery Type
Lithium Ion 18650

Output Voltage(V)
3.7

Operating Time(h)
≤8

External Power Supply
Type-C

Environmental characteristic

Protective Class
IP67

Operating Temp
–4℉~122℉/-20℃~50℃

Recoil Resistance(J)
6000

Material

Housing
