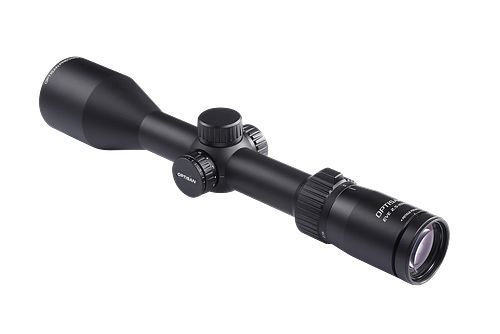

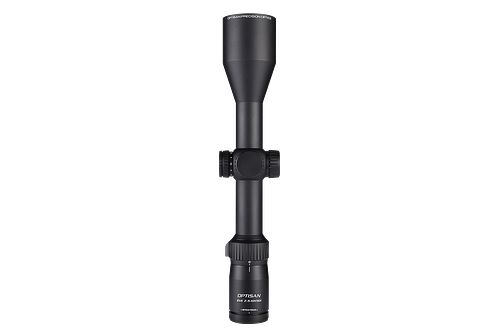

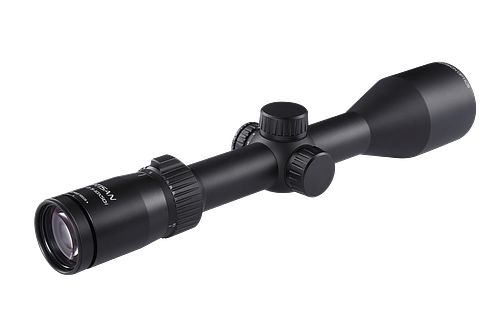

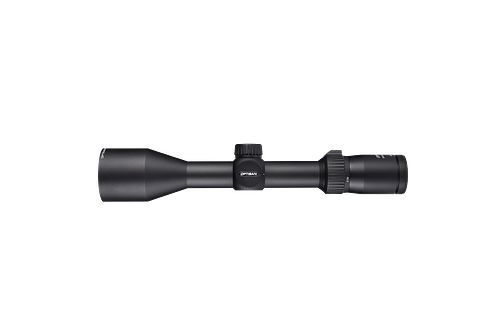

Optisan EVE, 2,5-10×50 IL mit 4A-dot

EVE-linjen fra Optisan er designet og konstrueret med robust præcision, så jægere kan tage alle udfordringer op. EVE 2.5-10X50i er et allround jagtsigte, der giver fordel af et enormt synsfelt på 2.5X og præcisionsskudplacering ved 10X. Leveres med et simpelt, rent tysk nr. 4 sigtekors, der blokerer minimalt mulig mål, hvilket muliggør hurtig målopsamling og en fint sigtende rød prik, der er fin nok til at tillade præcisionsskud op til 300 yards.

OPTICAL DATA

Magnification (High)
10X

Magnification (Low)
2.5X

Objective Diameter (mm)
50mm

Outer dia. Objective (mm)
59mm

FOV (min.mag）(ft/100yds)
42

FOV (max.mag）(ft/100yds)
10.5

Eye relief (in)
3.8” – 3.5”

Exit Pupil (Max mag.） (mm)
5mm

Exit Pupil (min. mag.） (mm)
20mm

Diopter Range (dpt)
+2/-2

Parallax Adjustment
Parallax free at 100yds

Coating
Fully Multi-coated

MECHANICAL DATA

Tube Construction
One-piece tube, aircraft aluminum

Elevation Adjustment (value per click)
0.1 mrad

Windage Adjustment (value per click)
0.1 mrad

Turret Style (Elevation)
Low profile, tooless resettable zero

Turret Style (Windage)
Low profile, tooless resettable zero

Travel Per Rotation
6 mil

Elevation adj. range
>= 15 mil

Windage adj. range
>= 15 mil

Eye Piece Diameter (in)
1.73”

Eye Piece Diameter (mm)
44mm

Eye Piece Length (in)
2”

Eye Piece Length (mm)
51.2mm

Mounting Length rear (mm)
58mm

Mounting Length front (mm)
48mm

Tube Dia. (mm)
30mm

Length (in)
13.26”

Length (mm)
337mm

Weight (g)
664g

Weight (oz)
23.42oz

Surface Finish
Matte Black

ENVIRONMENT DATA

Functional temperature
-20 ~ 50 degree celcius

Storage temperature
-20 ~ 50 degree celcius

Submersion tightness
JIS 7

RETICLE DATA

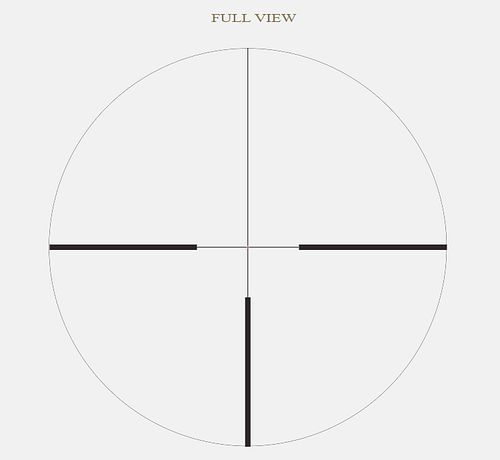

Reticle
MIL-G4Ai10X

Calibrated Ranging Power
10X

Focal plane
Second

Illumination
6 Steps illumination with off setting in between

DELIVERY INCLUDE

Standard Accessories
3″ Sunshade
ABS filp up covers
