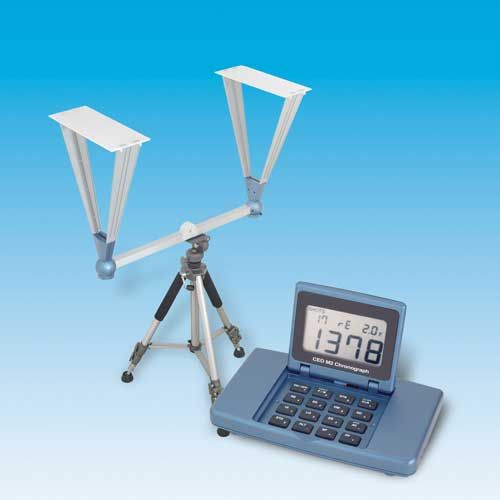

CED M2 Chronograph

Advanced technology enabled CED to double the operating speed of the CED M2 chronograph incorporating a micro-controller that runs at 48 MHz. Memory storage has been expanded 500%. Stored string size can range from a single velocity up to 500 velocities and up to 500 different strings. Expanded digital chip design now gives the CED M2 the ability of reading velocities at much lower light levels. On clear days, this means the ability to chronograph from early morning till almost sunset.

The keypad has been designed in calculator-style layout. Further, the CED M2 now includes a “Hi-Average” function which provides “one touch” calculation of the average of the three highest velocities in a string. This function is ideal for calculating Power Factor at IPSC & IDPA matches. In addition, the CED M2 Chronograph adds even more features like Single function string removal, 2 ft. folding mounting bracket for all uses, the ability to recall specific strings from memory or to remove specific strings from memory, and a USB interface. Now it is easier than ever to connect your chronograph to your PC and download your saved data into the newly designed and updated CED Data Collector software program.

Technical Information: Millennium 2 Chronograph System

Advanced software & digital circuitry = extremely fast performance!

Over 1000 shot capacity with up to 500 string permanent memory

Records velocities from 50 fps to 7,000 fps

High, Low, Average, & Hi-Average velocity readings

Extreme Spread & Standard Deviation

Edit & Omit functions

Built-in Calculator

IPSC / IDPA Power Factor computation Function

New Data Collector Software program included

Meter or feet recording

10X Mode – records slower velocities in decimeters

Voice Chip technology – Results can be heard as well as seen

On / Off control, with no-memory loss “Auto-Shut Down” mode

PC Downloads – USB interface for fast, software downloads of stored data

Data Collector Software program included

Low battery warning indicator

Back-up battery storage

9-Volt battery operation (not included)

Operating Temperature range (0°C to 50°C)

Variables that affect Chronograph performance:

Temperature (Barrel or Environment)

Lighting and Lighting Balance

Muzzle Blast

Sensor Spacing

Fluorescent Lighting

Power to Unit (Make sure no other items are running on 110V source)
